Compare table

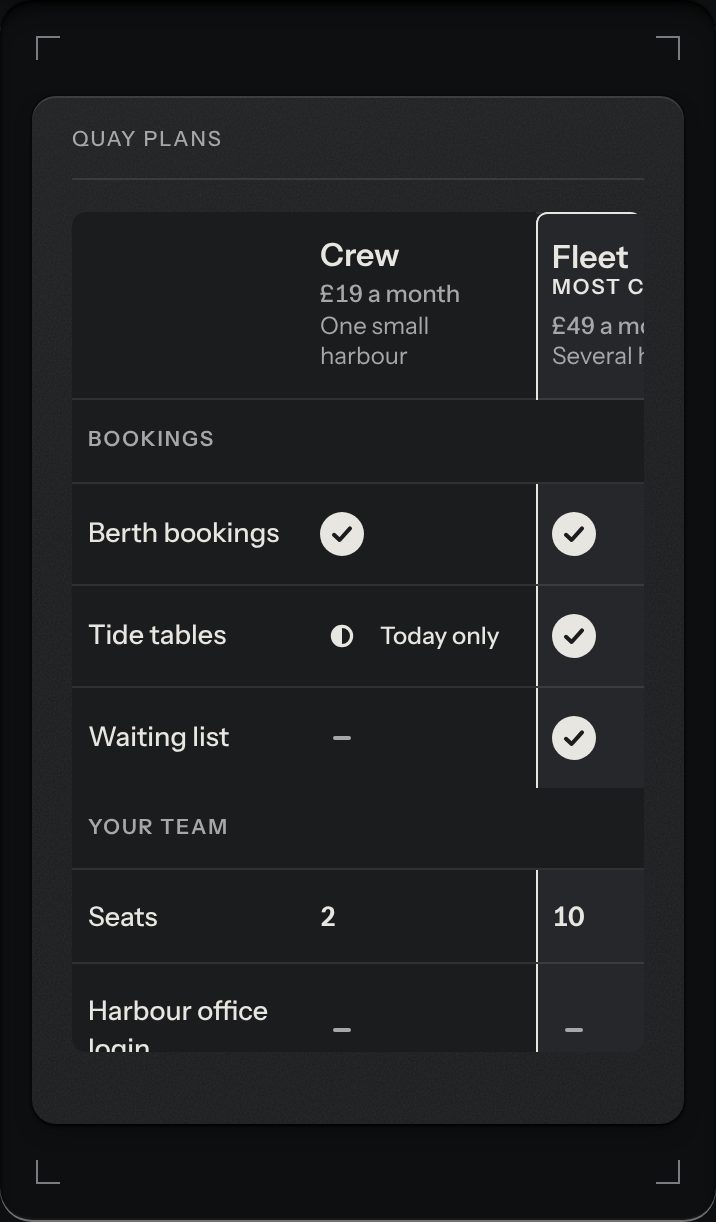

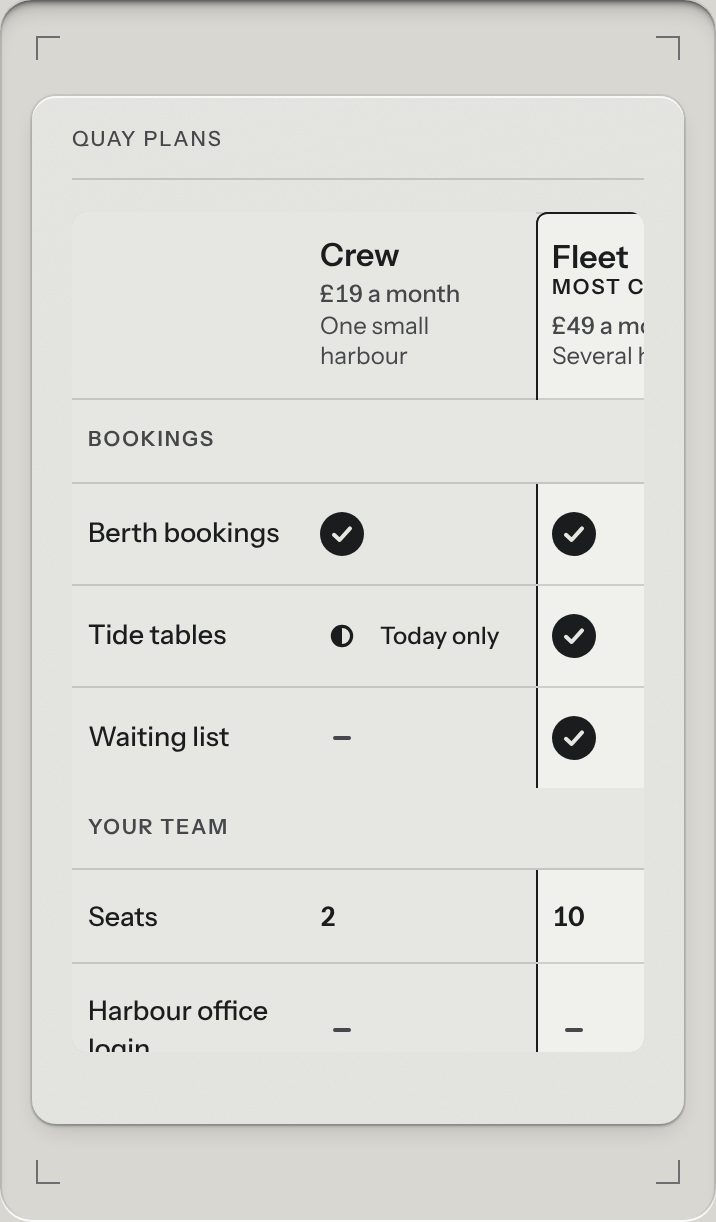

Plans or products as columns, features as rows, for the decision that is made by lining things up. The header stays at the top of its box and the feature names at its left. Every cell is a mark that differs in shape as well as in word (a disc with a tick, a dash, a half disc), so it reads without colour, and a partial one says what is meant (“Office hours”). One column can be lifted and ringed as the one to look at. On a phone the table scrolls inside its own box.
Seats open in 11 days. Want one email that morning?
Anatomy
The kit’s table, with the head and the first column pinned by position: sticky inside the box. The marks are drawn in ink on the face and need no accent colour. It is markup and a stylesheet; there is no script to load.
Variants
- Two plans, one group
- Nothing lifted
- No keys under it
- Narrow · scrolls inside its own box
States
- Included
- Not included
- Partly
- A figure
Props and options
| Name | Kind | Description |
|---|---|---|
| caption | element | The caption names the table, each plan is a column head and each feature a row head; a feature group is a row with a rowgroup head. |
| [data-featured] | attribute | The column to look at: lifted, with a rule down each side, and named by a tag in words (“Most chosen”). |
| compareMark(value) | function | What a value means. |
Usage notes
Scroll the table: the header and the feature names stay put. On a narrow screen the table scrolls inside its own box; focus it and use the arrow keys. Each mark is a different shape as well as having a word.
Accessibility
- It is a real table.
- A mark is never a colour. Included, not included and partly included are three different shapes (a disc with a tick, a dash, a half disc) and each holds its word for a screen reader. A partial mark says what is meant beside it, in print.
- The featured column is lifted and ringed and carries a tag in words, so it does not rely on colour either. The header and the feature names stay pinned while the rest scrolls.
- On a phone the table keeps its width and scrolls inside its own box. The box takes the focus and answers the arrow keys, has a visible ring, and is named by the table’s caption; the page does not scroll sideways.
- Only the featured plan’s key is the contrast key; the others are plain keys, and each key’s name includes its plan (“Choose Fleet”).
