Command palette

Every action and page behind one key: a modal plate whose entry line is a lit display, with the results printed below and the chosen one pressed in.

On this page
  1. Anatomy
  2. Variants
  3. States
  4. Props and options
  5. Usage notes
  6. Accessibility
  7. Related parts

Seats open in 11 days. Want one email that morning?

Anatomy

A native dialog with the kit’s rise. The entry line is a VFD (the display background, scanlines, an inset shadow and a two-step glow on the typed text) with the caret in the same light. The chosen line is the kit’s recess.

Variants

  • In a page · live
  • Shortcuts · the keys to press
  • Nothing found

States

  • Just opened
  • Typed, moved down
  • Nothing found

Props and options

NameKindDescription
data-command-keyattributeOpens it with ⌘ or Ctrl and that letter. Leave it off to open only from a key.
data-command-openattributeOn any key: opens the palette with an empty field.
data-value · data-keywordsattributeWhat the line returns; other words it should be found by.
openCommand(d) · filterCommand(d) · commandMatches(text, query)functionOpen it; refilter after changing the lines; the pure match rule.
↑ ↓ · Enter · EscapekeyboardMove the chosen line (wrapping), run it, close. Focus returns to where it was.

Usage notes

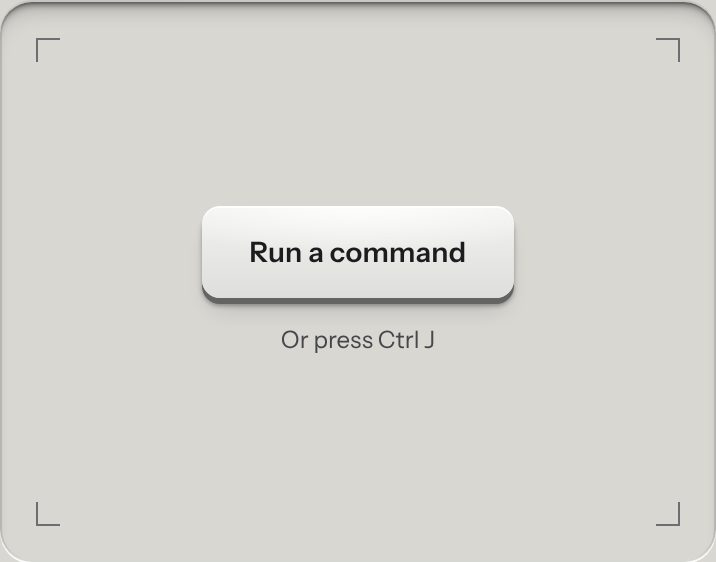

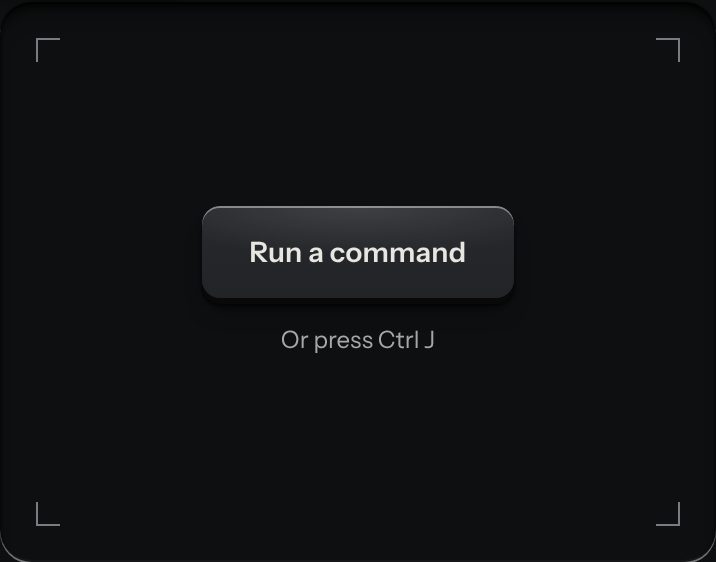

Press the key, or Ctrl J here (Ctrl K is this site’s own search). Type “bat”, move with ↑ ↓, Enter runs, Escape closes.

Accessibility

  • The WAI-ARIA combobox with a listbox.
  • The count of matches and “Nothing matches” are text, and the query is written in as text, never as markup.
  • The glowing entry line is display cyan-white on near-black: over 16:1.
  • In the field, ↓ and ↑ move through the matching lines (past the last or first they wrap round), Enter runs the chosen line, and Escape closes the palette and returns focus to where it was.
